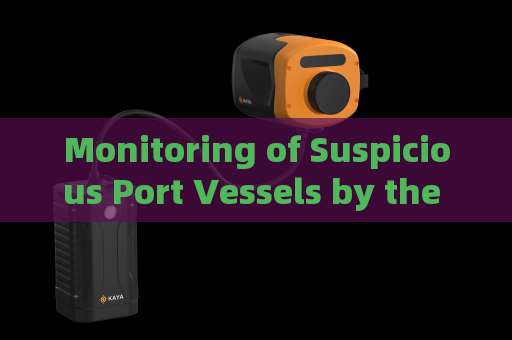

Monitoring of Suspicious Port Vessels by the Penetration Imager in Strong Backlight Overexposure Conditions with Strong Light Suppression Imaging Port security operators face a persistent challenge when monitoring suspicious vessels under harsh lighting conditions. Strong backlight, such as direct sunlight reflecting off the water surface or glaring off the vessel’s superstructure, often causes overexposure in conventional surveillance cameras. This overexposure washes out critical details inside the cabin or behind glass windows, rendering the image useless for identifying illicit activities like smuggling, unauthorized boarding, or concealed cargo. The problem intensifies during early morning or late afternoon when the sun sits low on the horizon, creating extreme contrast between the bright background and the darker interior of a vessel’s cabin or bridge. Ordinary optical systems struggle to balance exposure, and even high-dynamic-range cameras fail to suppress the blinding glare from the water or sky. As a result, security personnel may miss vital intelligence, allowing threats to go undetected. This real-world pain point demands a solution that can penetrate optical media—specifically the glass windows and portholes of port vessels—while simultaneously suppressing strong backlight to deliver usable imagery. The Penetration Imager, an advanced optical imaging instrument based on laser range‑gated imaging technology, directly addresses this problem. It operates as an active imaging system composed of a high‑repetition‑rate pulsed laser, an image‑intensified gated camera (with an MCP image intensifier, high‑voltage module, and timing module), a beam expander, and an imaging lens. By emitting short laser pulses and precisely synchronizing the camera’s electronic shutter to open only when the reflected light from the target returns, the system effectively rejects unwanted background illumination. This gating mechanism allows the Penetration Imager to achieve high‑contrast imaging even in strong backlight overexposure conditions. The laser illumination is concentrated on the target, while the camera’s gate blocks the overwhelming ambient light from the sun or reflections, eliminating visible glare and overexposure. Furthermore, the system can penetrate optical media such as glass windows, windscreens, and portholes—common on port vessels—without interference from surface reflections or dirt. The active illumination also overcomes the problem of low light inside cabins, providing clear details of occupants, equipment, or contraband. No other imaging modality offers this combination of strong light suppression and glass penetration. In practical port security operations, the Penetration Imager is deployed from a fixed vantage point or a mobile patrol unit, allowing officers to monitor suspicious vessels at stand‑off distances. When a target vessel is identified in strong backlight conditions—for example, a fishing boat moored with its stern facing a setting sun—the operator activates the imager and adjusts the laser pulse parameters and gate timing to match the distance to the vessel’s glass windows. The resulting image shows the interior with remarkable clarity, free from the blinding highlights that would otherwise obscure the scene. The system’s ability to suppress strong backlight ensures that even when the sun is directly behind the vessel, the operator can see through the windows and identify individuals, suspicious containers, or hidden compartments. This capability is particularly valuable during dawn or dusk surveillance operations, when typical cameras are most compromised. The Penetration Imager also performs reliably in maritime environments where spray, mist, or light fog is present, as its gated technique reduces backscatter from airborne particles—another advantage over conventional optics. Operators can further optimize the imaging by fine‑tuning the gate width and laser intensity, adapting to varying distances and target materials. For instance, when monitoring a large cargo ship with multiple portholes and a tinted bridge window, the operator adjusts the range gate to isolate the reflection from the glass while minimizing stray light from the water surface. The live feed displays on a ruggedized monitor, and the system can record high‑resolution imagery for forensic analysis. This allows security teams to build evidence without needing to approach the vessel and risk detection. The Penetration Imager thus provides a decisive tactical advantage for monitoring suspicious port vessels, converting a previously blind spot into a clear window of observation. Its strong light suppression imaging capability ensures that even the most challenging backlight overexposure does not compromise the mission, making it an indispensable tool for maritime security forces.
